Laminar Flow Cabinet – Vertical & Horizontal Series

Full vertical & horizontal laminar flow cabinet range: interactive, standard, double-sided and economic models.

Category:
  1. General Details

    This catalogue covers Scitek’s full Laminar Flow Cabinet range, spanning interactive touchscreen vertical models, standard single- and double-sided vertical cabinets, standard and economic horizontal cabinets, and a compact benchtop vertical model. Vertical Laminar Flow Cabinets provide sample/product protection by directing filtered air downward over the work area; Horizontal Laminar Flow Cabinets provide a sterile work area with front-to-back horizontal airflow. Shared features across the range include a motorised front sliding sash interlocked with fan and UV lamp, HEPA filtration at ≥99.995% efficiency (0.3μm), ISO Class 5 (Class 100) cleanliness, LCD/microprocessor display of airflow velocity, time, temperature and filter/UV life, and memory retention on power failure. Scitek Global Co., Ltd is a professional manufacturer of laboratory instruments and medical devices, certified by ISO 9001, ISO 13485 and ISO 14001; products are certified by ETL, CE and FDA.

    Available Models

    Interactive Vertical:
    LCB-V800I
    LCB-V1100I
    LCB-V1300I
    LCB-V1500I
    LCB-V1800I

    Vertical:
    LCB-V800
    LCB-V1100
    LCB-V1300
    LCB-V1600
    LCB-V1900

    Double-Sided Vertical:
    LCB-V1100D
    LCB-V1300D
    LCB-V1600D

    Horizontal:
    LCB-H1100
    LCB-V1300
    LCB-V1600
    LCB-V1900

    Economic Horizontal:
    LCB-H1100E
    LCB-V1300E
    LCB-V1500E
    LCB-V1800E

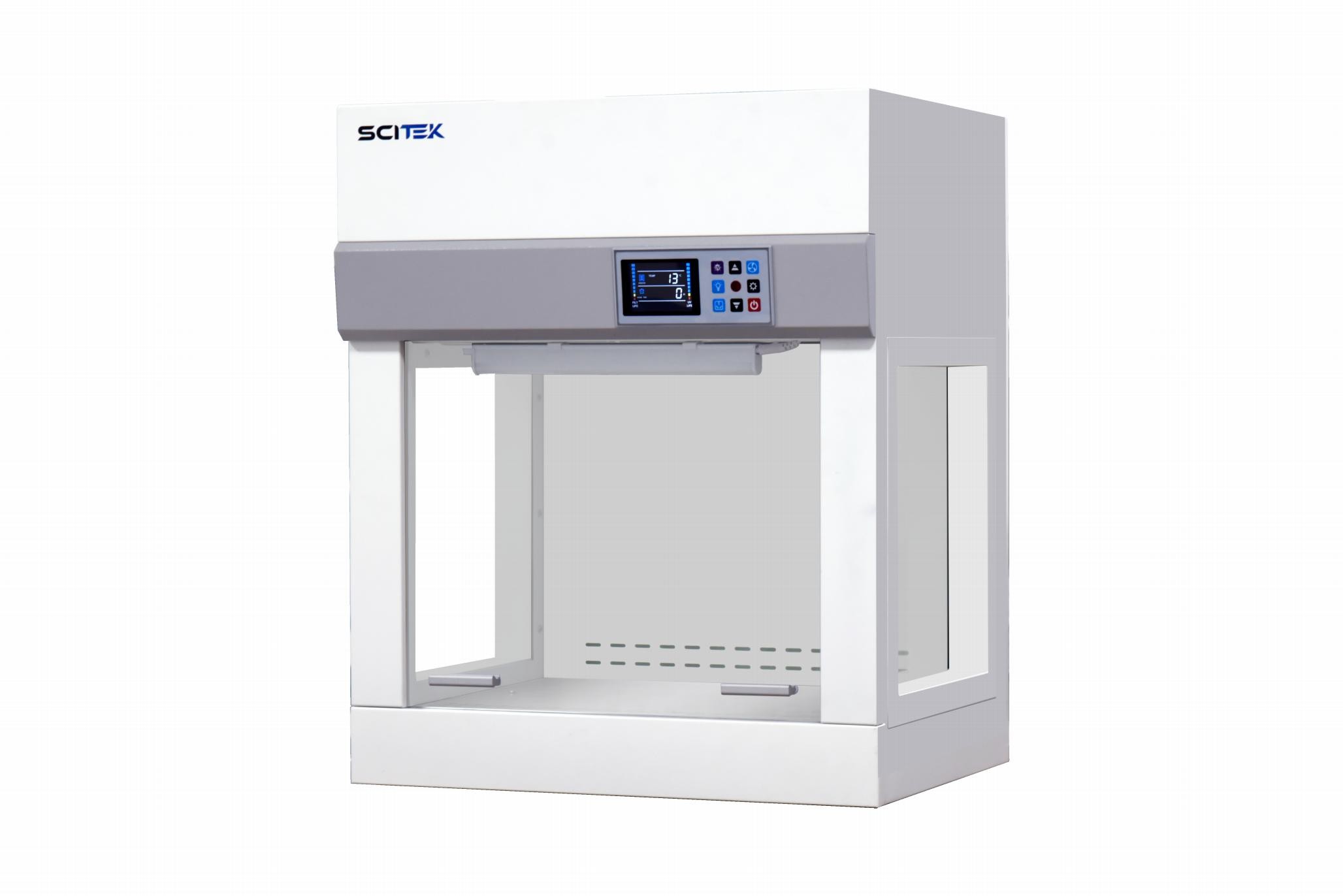

    Compact Vertical:
    LCB-V500II

    MDA Registered

  2. Technical Info - Standard Features

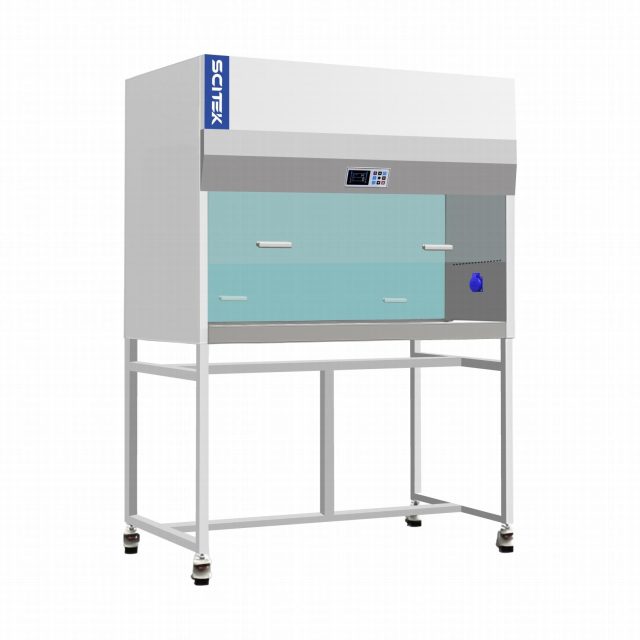

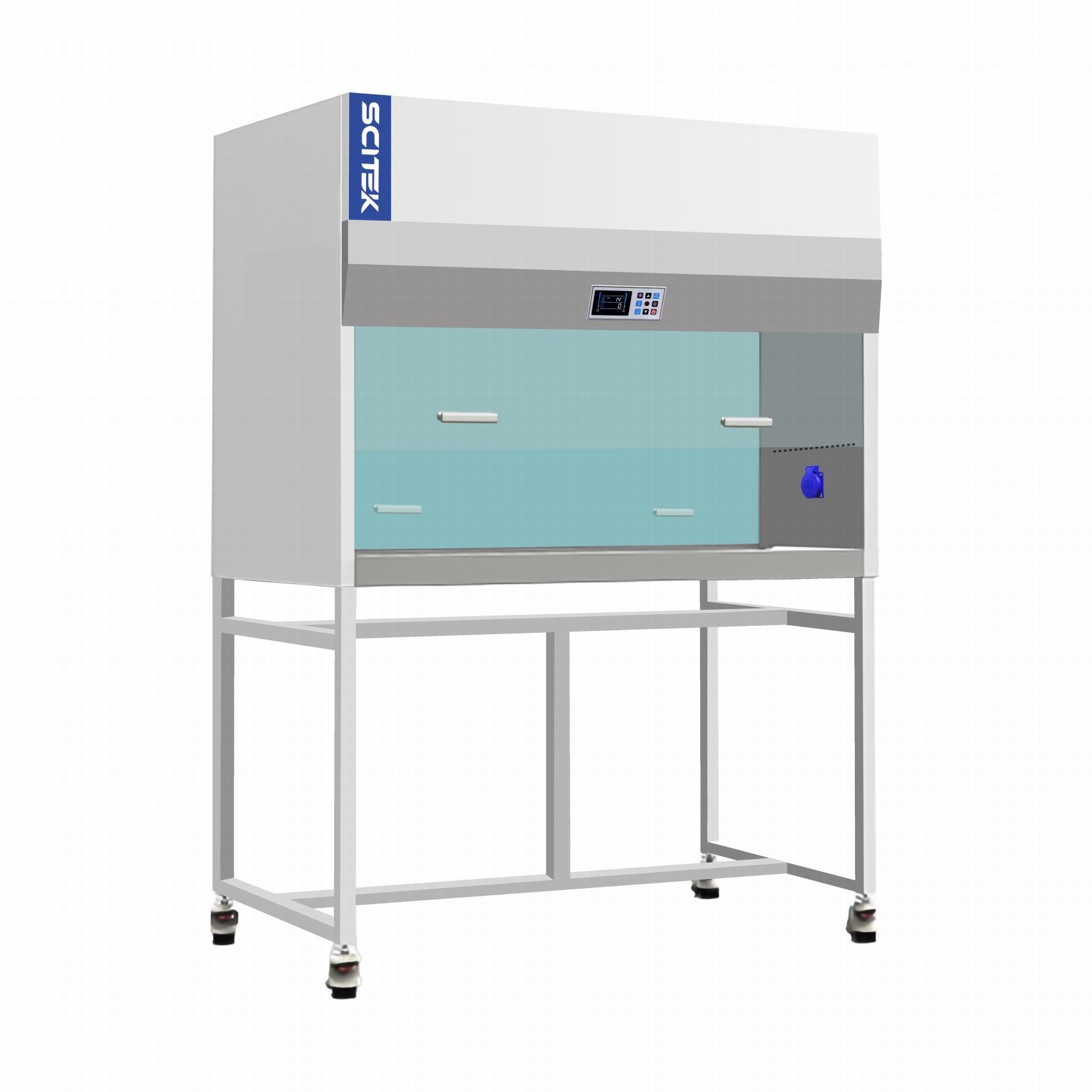

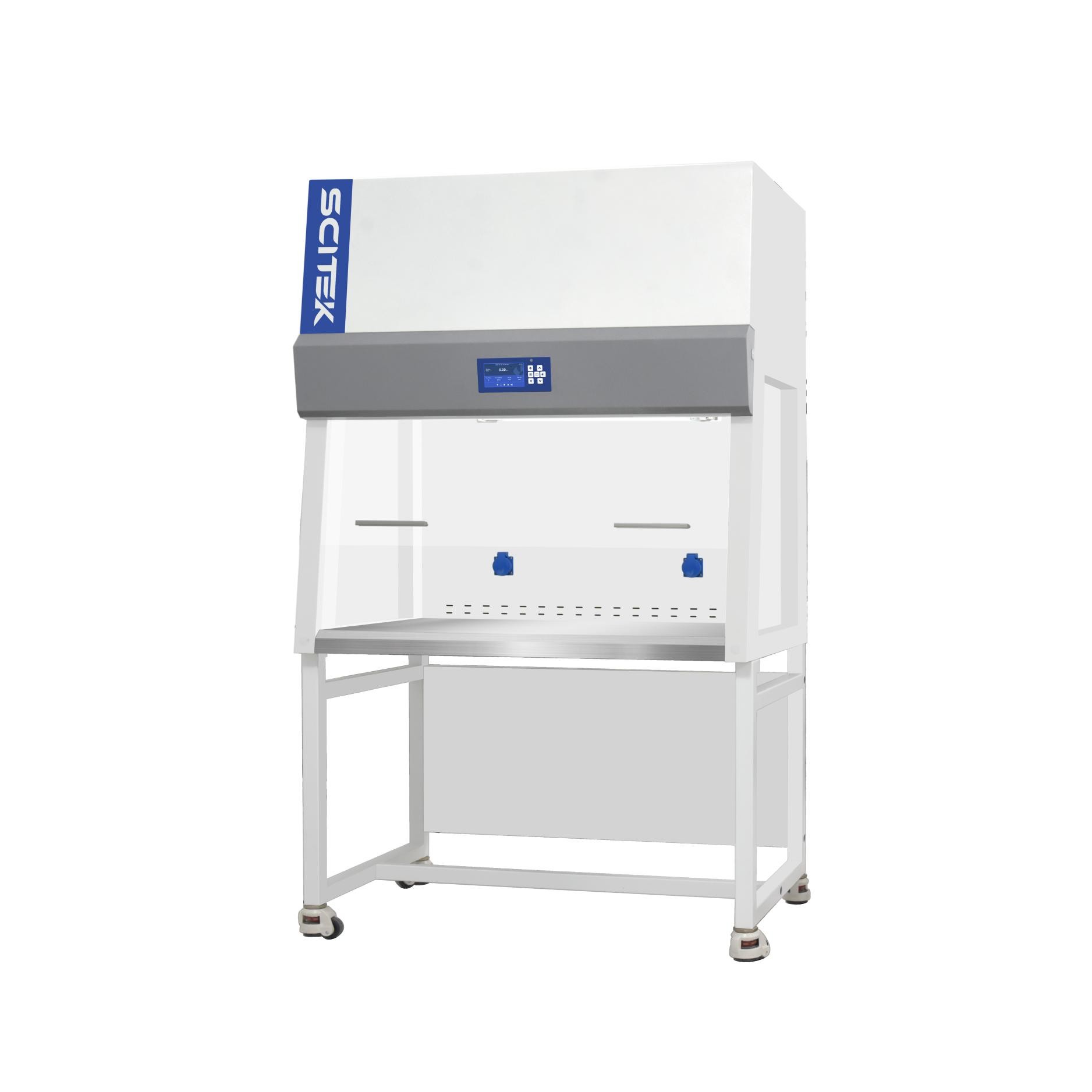

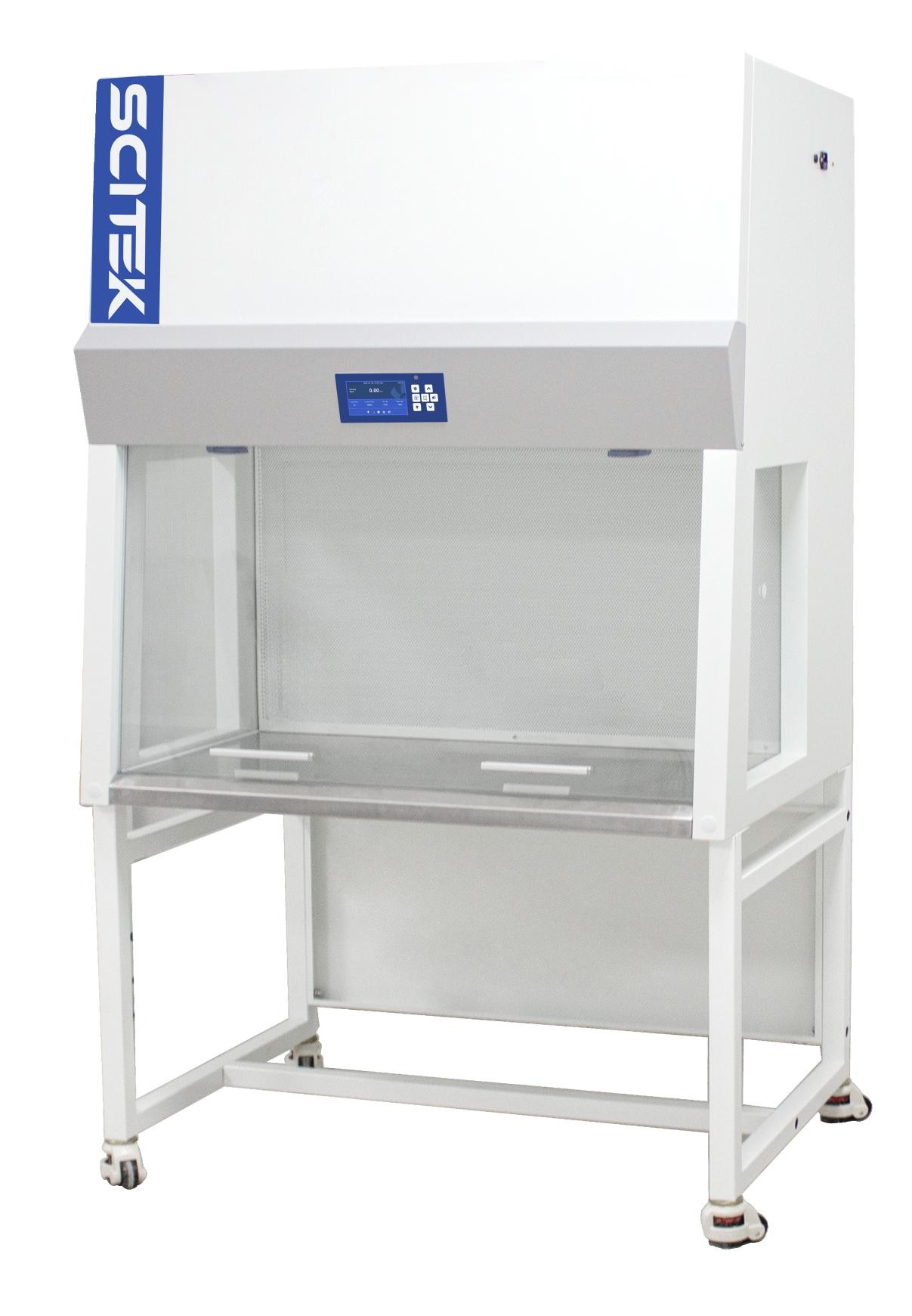

    Standard Vertical (LCB-V1100/1300/1600/1900): airflow velocity 0.2-0.5 m/s adjustable; 1pc HEPA filter >99.995% at 0.3μm; ISO Class 5 cleanliness.

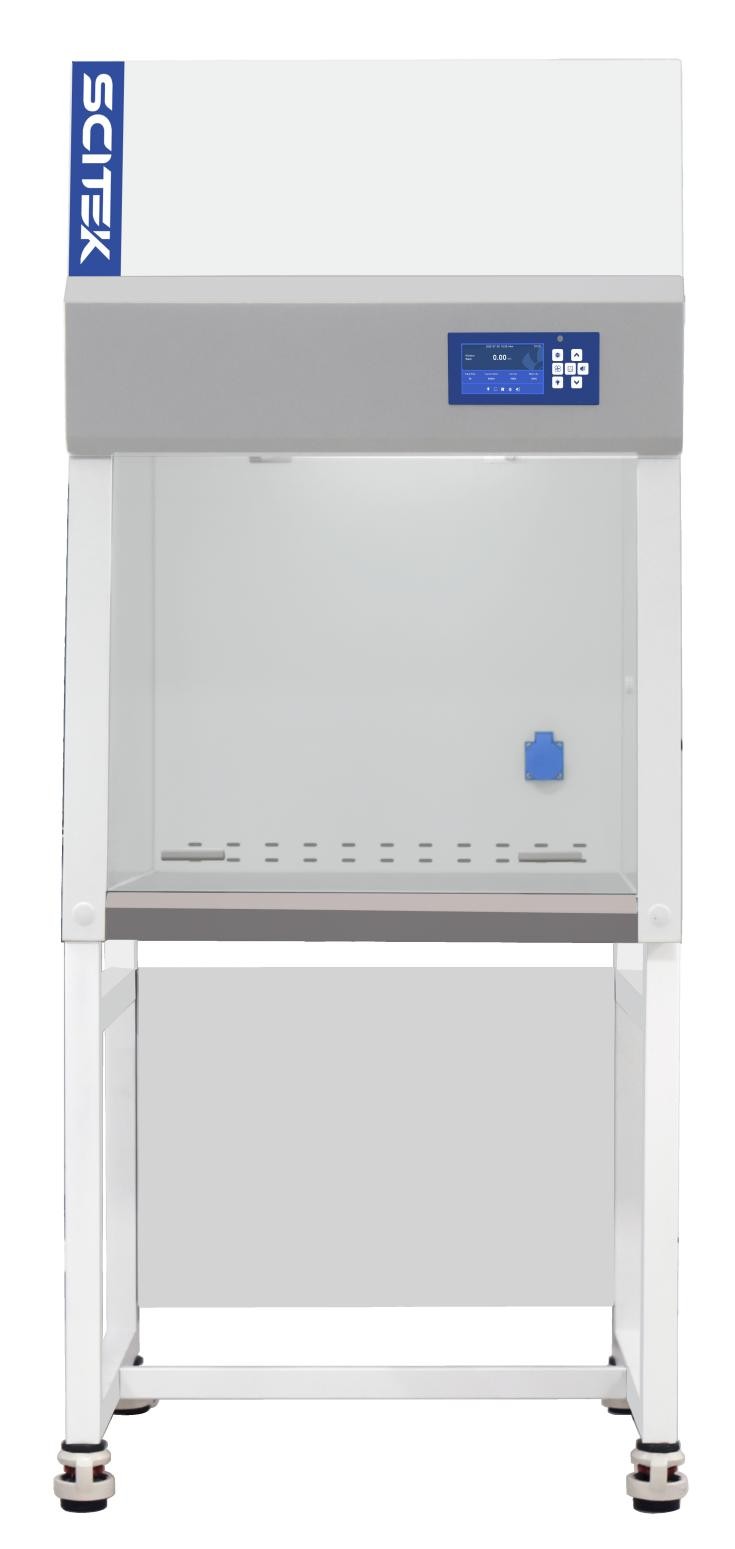

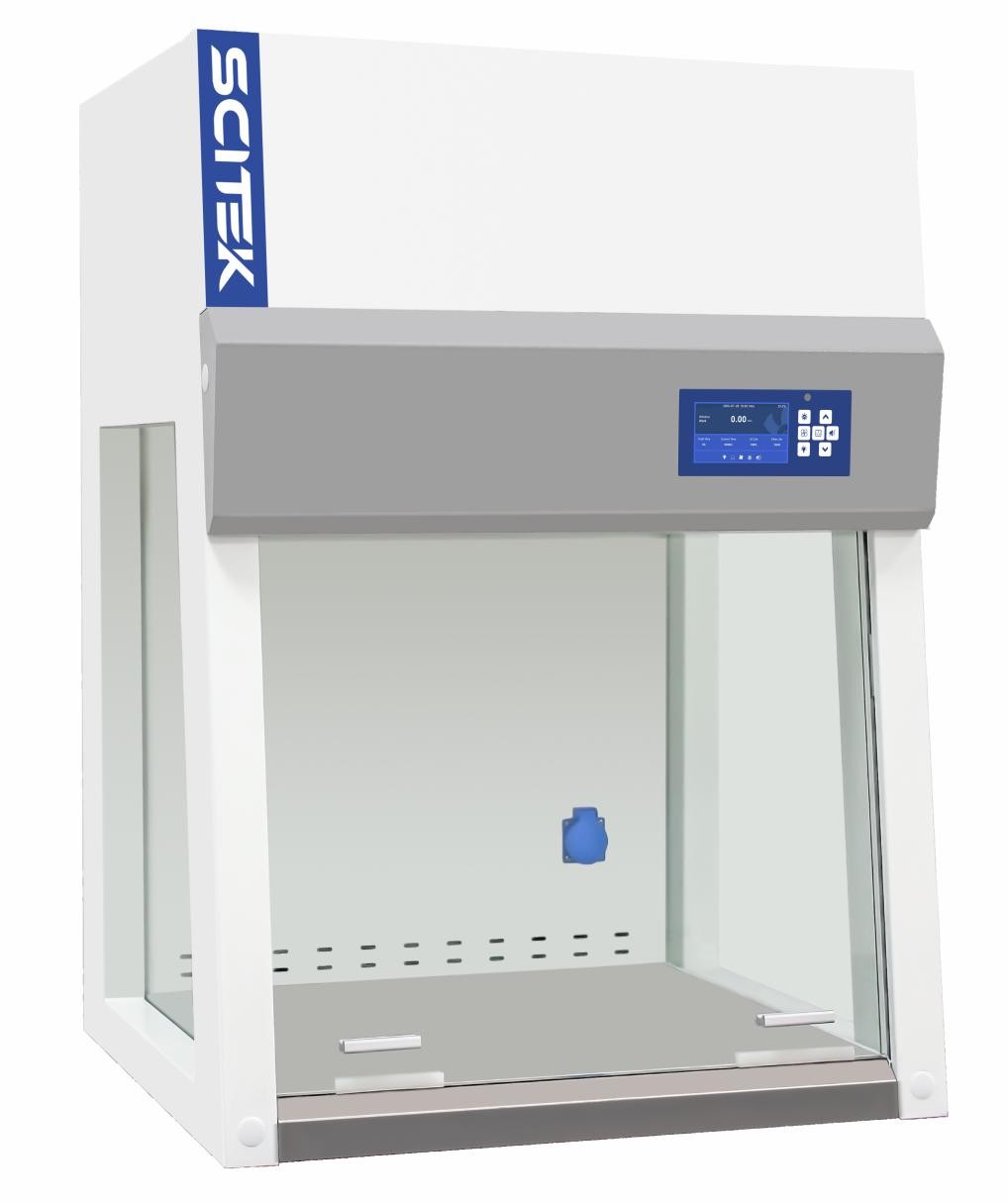

    Interactive Vertical (LCB-V800I-1800I): motorised front window, transparent side glass, removable stainless-steel work surface, three-level safety login system.

    Double-Sided Vertical (LCB-V1100D/1300D/1600D): dual-access design for sample protection from both sides.

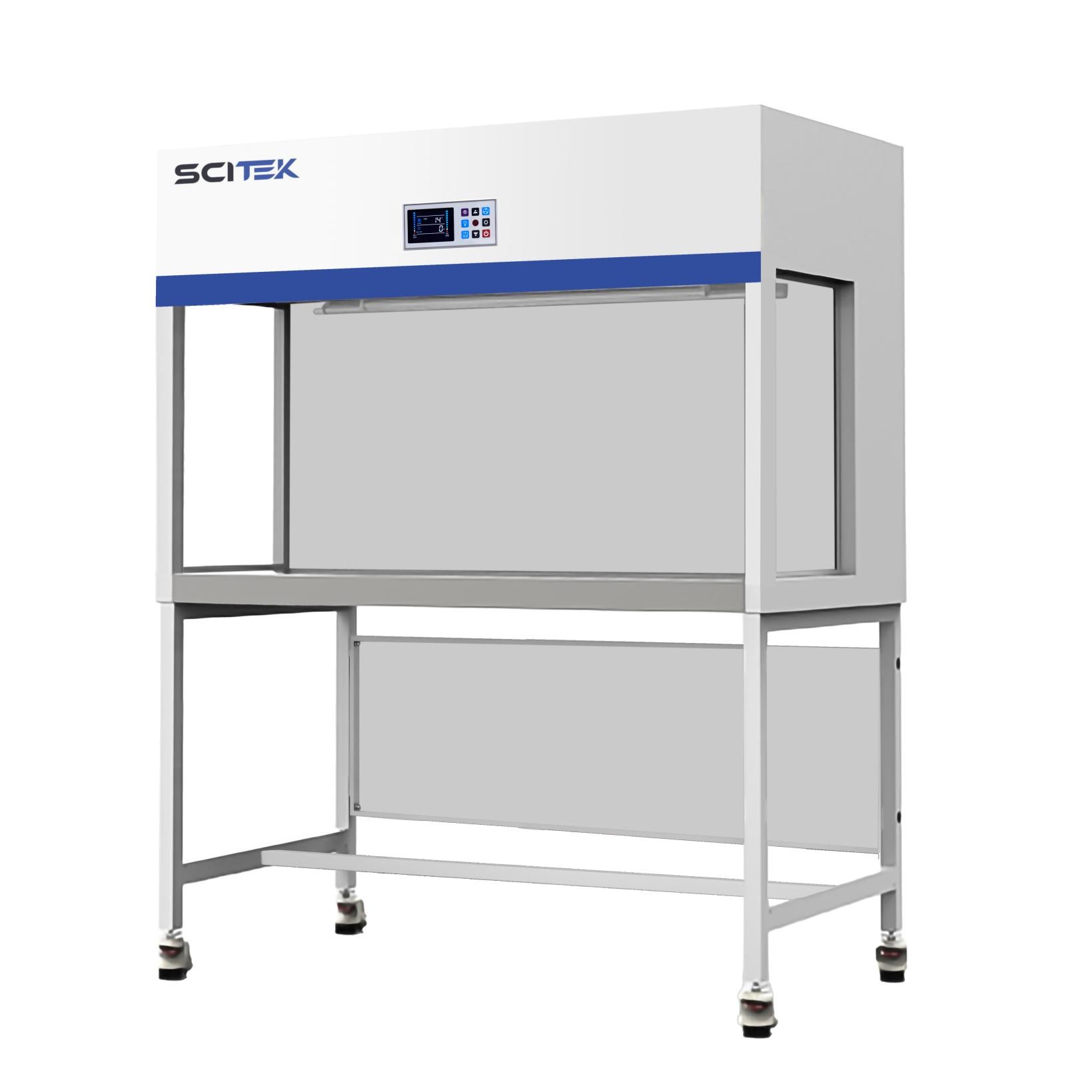

    Horizontal (LCB-H1100-1900 and economic LCB-H1100E-1800E series): front-to-back horizontal HEPA-filtered airflow for a sterile work zone.

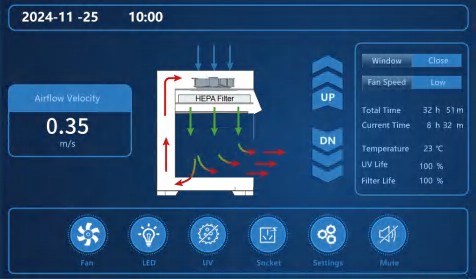

    LCD display: real-time airflow velocity, time, temperature, UV life and filter life; front sliding sash interlock with fan and UV lamp.

    Independent capacitors on host and sockets to prevent current overload; memory function in case of power failure.

    Perforations at back wall of work zone to eliminate air turbulence.
