Blood Bag Weighing Scale Mixer

Blood bag weighing scale/mixer family (4 configurations: Base to TC-RF-ID), load-cell accuracy +/-1ml, optional RFID and wireless connectivity.

Category:
  1. General Details

    This technical data sheet covers a family of four blood bag weighing scale devices, grouped in a single document, which vary according to available configurations. Starting from the Base model and adding components, the scale reaches its most comprehensive configuration (EO51P-TC-RF-ID) with cable data transmission, wireless transmission and an RFID tag reader/writer.

    The scale features a large blue LCD display with white backlight, an easy-to-clean alphanumeric membrane keypad, a large oscillating mixing tray (5-second mixing cycle, 40 Degree rocking range) suitable for bags with filters, and a load cell volume transducer with +/-1 ml weighing accuracy. Automatic and manual tube clamping is provided with a tube presence/absence sensor.

    Higher configurations add an RS232 serial port for barcode reader connection, an RS422 port for network connection, bi-directional PC connectivity via wireless or cable, 4-level password protection, and RFID tag reader/writer functionality (13.56 MHz HF, ISO 15693, ISBT-compliant) – features that are excluded on the Base model as noted in the comparison table below.

    Available Model
    1. EO51P-B – Basic configuration
    2. EO51P-TC – Cable data transmission
    3. EO51P-TC-RF – Cable & wireless data transmission
    4. EO51P-TC-RF-ID – Cable & wireless data transmission with RFID reader

  2. Technical Info - Standard Features

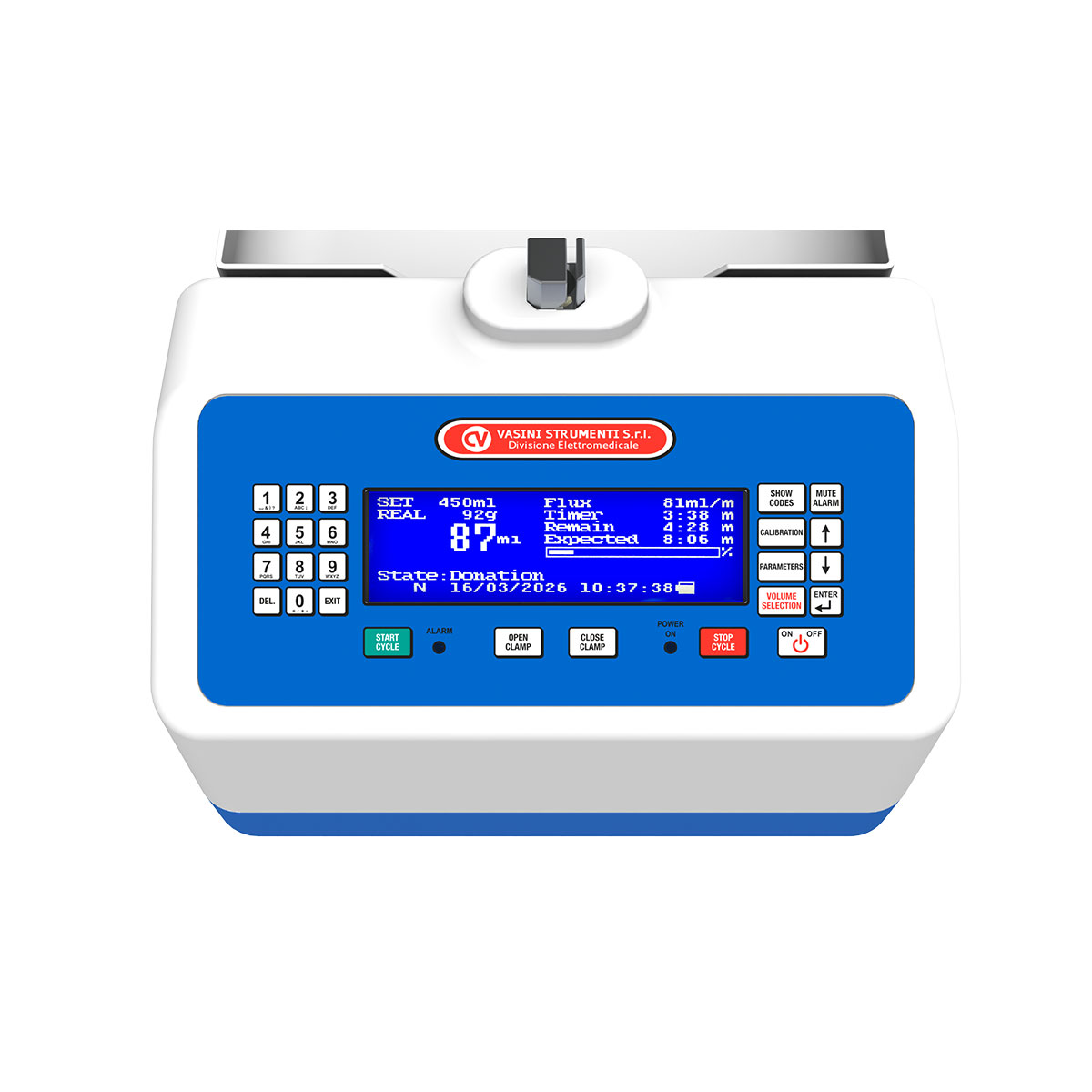

    Large blue LCD display (130mm x 40mm) with white backlight, adjustable brightness/contrast.

    Alphanumeric membrane keypad for manual data entry.

    Oscillating mixing tray, 5-second mixing cycle, 40 degree rocking range.

    Automatic/manual tube clamping with tube presence/absence sensor.

    Load cell volume transducer, weighing accuracy +/-1 ml

    Automatic tare for blood bag weight; automatic gram-to-ml conversion.

    Electronic volume setting 1-999 ml, with 10 quick-recall preset SETS.

    Real-time display: set volume, collected weight/volume, flow rate, duration, alarms, battery status.

    Operation via mains power or internal rechargeable battery (2-hour recharge).

    Storage capacity up to 26,000 collection cycles (optional additional memory).

    4-level password protection (Operator/Administrator/Maintenance/Calibration).

  3. Technical Info - Optional Add-ons

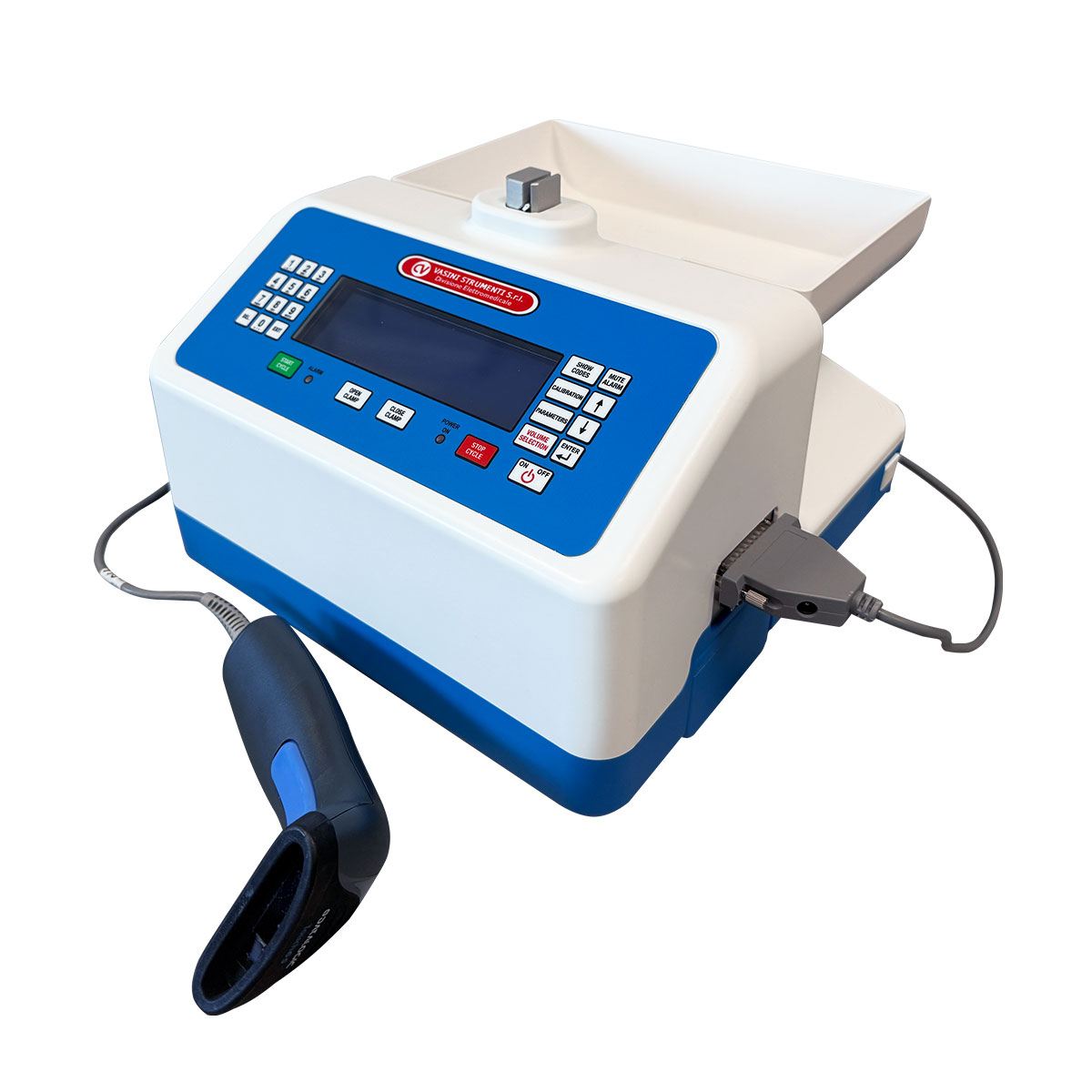

    RS232 barcode reader port (excluded on Base model).

    RS422 network / wireless bi-directional PC connection (excluded on Base and TC models).

    RFID tag reader/writer, 13.56 MHz HF, ISO 15693, ISBT compliant (TC-RF-ID model only).

    1D/2D barcode reader, Supervisor PC software, additional memory expansion module.

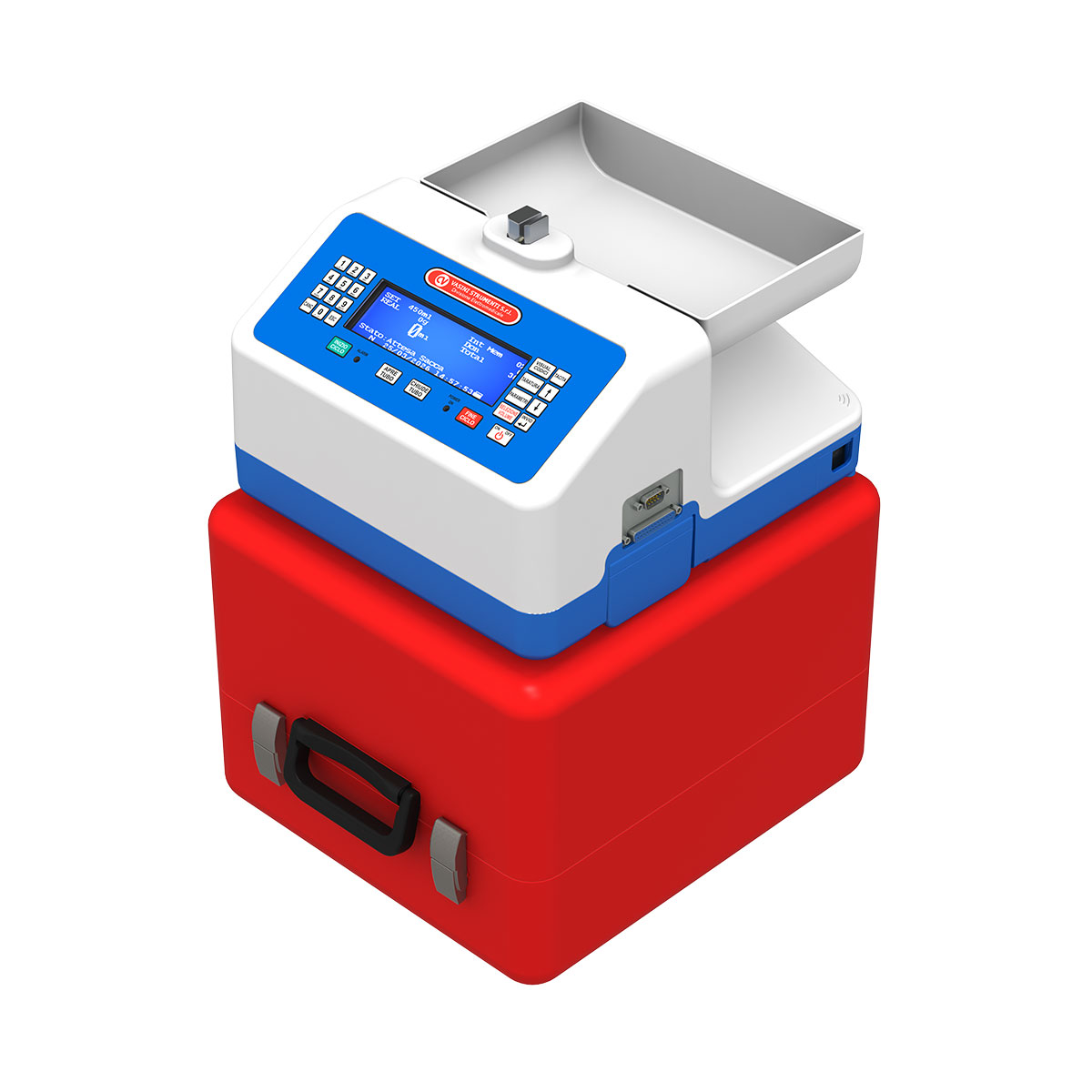

    Calibration weight set, mixer carrying case, mixer trolleys (fixed or electric height-adjustable).
