EASYMIX27 Touch Screen Blood Collection Mixer
7-inch touchscreen blood collection mixer, +/-1ml accuracy, wireless bi-directional LIMS interfacing, RFID and barcode data capture.
- General Details

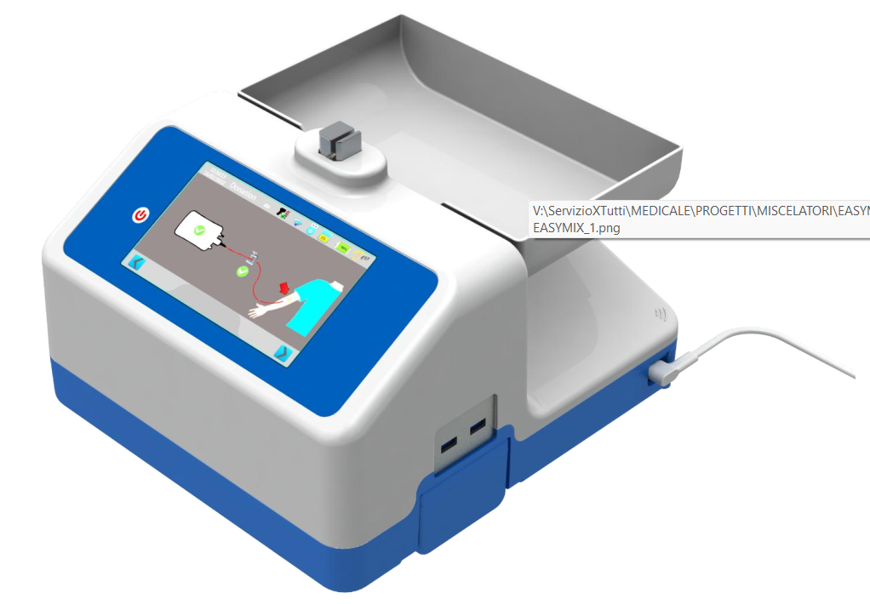

The EASYMIX27 is an advanced blood sampling mixer using latest-generation reprogrammable microprocessors, able to receive firmware updates to meet diverse customer requirements and stay current with regulations. It has a 7-inch color LCD touchscreen (154mm x 86mm) that guides the user through the withdrawal procedure with real-time display of set volume, collected weight/volume, flow rate, remaining time and device status.
The mixing system has a large, removable oscillating plate (5-second mixing cycle, 40 degree tilt range) suitable for bags with filters, automatic/manual tube clamping with a tube presence sensor, and a load cell transducer with +/-1 ml weighing accuracy. Data acquisition is via barcode reader, RFID tag reader, or touch screen, with bi-directional wireless or wired communication to hospital management systems via a dedicated Supervisor PC.
Volume can be electronically set from 200 to 999 ml (adjustable mid-donation), with 10 quick-recall preset SETS. The device supports up to 25 simultaneously monitored mixers, 4-level password protection, and ISBT-guideline-compliant procedures.
- Technical Info - Standard Features
7″ color LCD touchscreen (154mm x 86mm), adjustable brightness.
Mixing plate: large, removable, 5-second cycle, 40 degree tilt range.
Automatic/manual tube clamping with tube presence/absence sensor.
Load cell volume transducer, weighing accuracy +/-1 ml.
Electronic volume setting 200-999 ml, 10 quick-recall preset SETS.
USB port for barcode reader; USB host port for data download/firmware update.
Mains or internal rechargeable battery power (4-hour recharge).

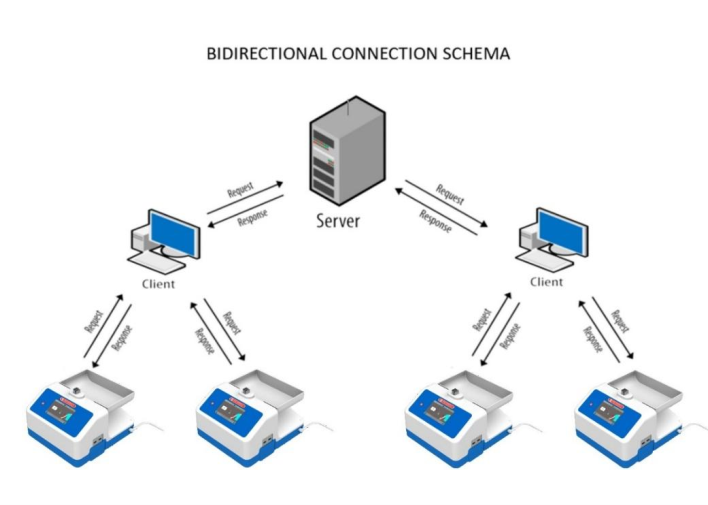

Bi-directional wireless (RF) communication with hospital LIMS via Supervisor software.
Real-time monitoring of up to 25 mixers simultaneously.
4-level password protection (Operator/Administrator/Maintenance/Calibration).
RFID tag reader/writer (13.56 MHz HF, ISO 15693, ISBT compliant) – accessory, not included.
Storage capacity: thousands of sampling cycles.
- Technical Info - Optional Add-ons
1D barcode reader.
1D and 2D barcode reader.
RFID tag reader/writer kit.
2.5GHz wireless transceiver module.
Supervisor PC connection software.
USB flash drive for data/firmware.
Mixer carrying case (HDPE).
Calibration weight kit (1 kg, Class M1, LAT certificate).
Fixed or electric height-adjustable mixer trolley.
LED status indicator light.
