ECI Platelet Incubator & EAJ Platelet Agitator Series
Platelet incubator (+22C, +/-0.5C) and matching agitator series for blood banks; AISI 304 chamber, USB data logging, 2-year warranty.
- General Details
The EMSAS ECI Series is a range of platelet & thrombocyte incubators that maintain a set temperature of +22C (adjustable) with +/-0.5C tolerance, using a user-friendly digital control panel with advanced microprocessor technology and password-protected access. When the door is opened during operation the internal fan and platelet agitator automatically stop, resuming once the door is closed; if the agitator fails, the system continues operating and raises an alarm.
The inner chamber is AISI 304 stainless steel, with a multi-airflow system for uniform temperature distribution and two temperature probes (internal cabinet and liquid/blood component). Data is logged for up to 30 days and can be exported via USB in Excel format for up to 10 years.
The EAJ Series platelet & thrombocyte agitators are used together with the ECI incubators, with stainless steel shelves with PVC side edges for improved air circulation, an operating speed of 60 cycles per minute, and capacity from 6 to 11 apheresis bags per shelf, depending on model.
ECI Series Platelet Incubator Model
ECI 01 – 110L [1 Pcs Agitator EAJ05/EAJ09]
ECI 02 – 250L [1 Pcs Agitator (EAJ 05/09) or 1 Pcs Agitator (EAJ-L 09)]
ECI 03 – 600L [3 Pcs Agitator (EAJ 09)]EAJ Series Platelet Agitator Model

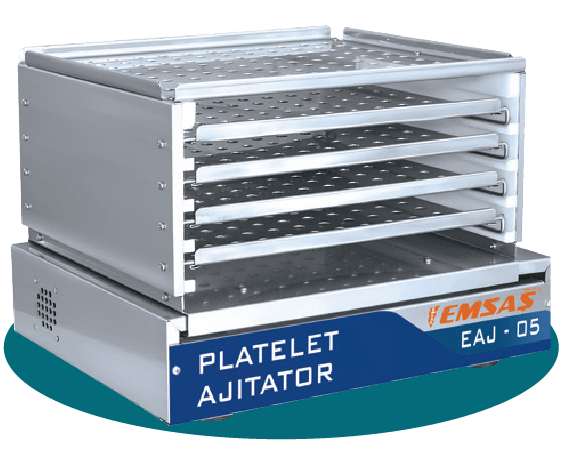

EAJ05 – 35 Bags

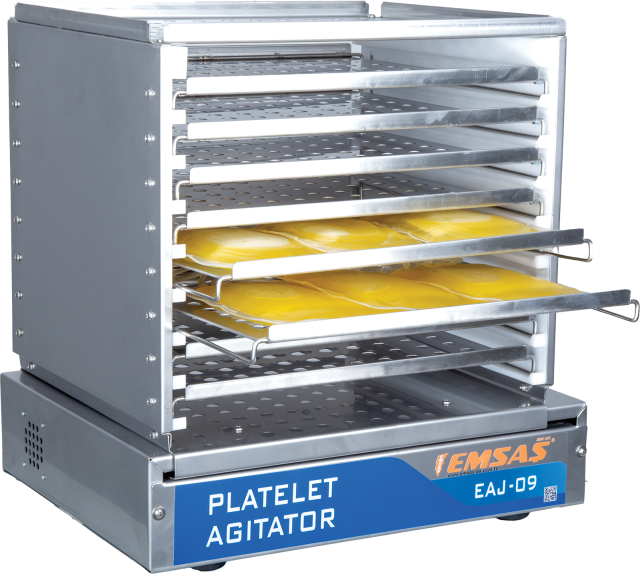

EAJ09 – 54 Bags

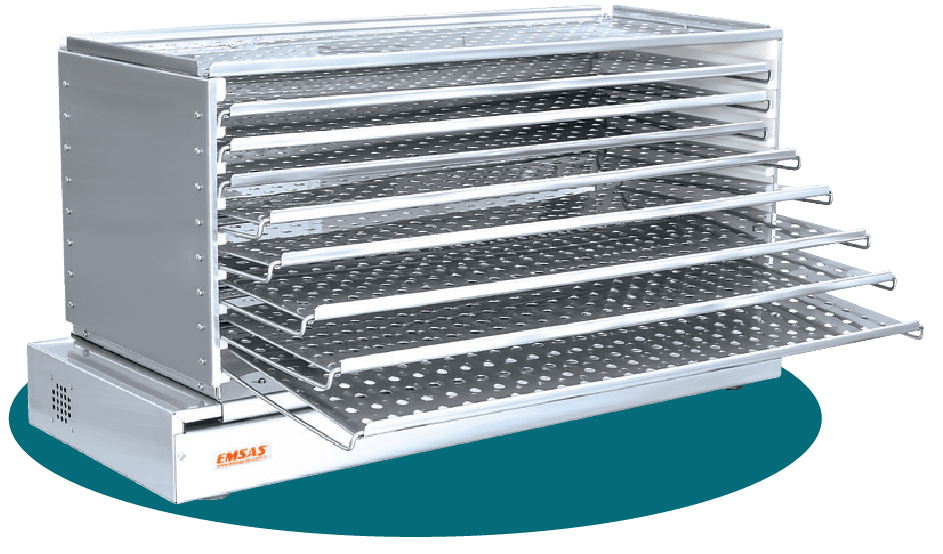

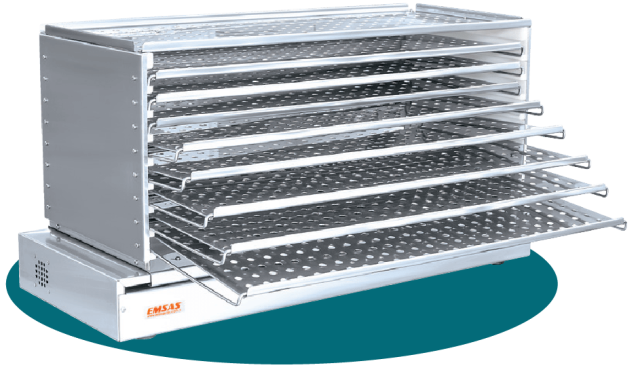

EJA-L-09 – 100 Bags - Technical Info - Standard Features
Set temperature +22C (adjustable), +/-0.5C tolerance.
Digital control panel with advanced microprocessor technology, password protected.
Data storage up to 30 days; USB export to Excel (up to 10 years).
AISI 304 stainless steel inner chamber
Fan and agitator auto-stop on door open, resume on close; alarm on agitator failure.2 temperature probes (cabinet + liquid/blood component), +/-0.1 Deg. C accuracy.
Double-layer tempered glass door, lockable, magnetic gaskets.
Multi-airflow system for uniform temperature distribution.
Visual/audible alarm: temperature deviation, door open, power failure, sensor failure.
Remote alarm output and external sensor input ports.
LED interior lighting, silent vibration-free operation.
EAJ Agitator: 60 cycles/min, stainless steel shelves with PVC side edges, low noise.
2-year warranty.
- Technical Info - Optional Add-ons
Thermal printer / graphical chart recorder.
Touchscreen display.
R290 / natural refrigerant gas variant.
UPS voltage regulator.
GSM / Wi-Fi remote monitoring.
SMS and e-mail alert module.
5.5 inch touch screen display.
