Raycell Mk2 X-Ray Blood Irradiator
Raycell® Mk2 X-ray Blood Irradiator delivers the required dose to help prevent TA-GVHD (Transfusion-Associated Graft-Versus-Host Disease).
- General Details
A Convenient Choice for Blood Irradiation
Raycell Mk2Efficient, convenient and user friendly, the Raycell® Mk2 X-ray Blood Irradiator provides a safe and cost-effective choice for blood irradiation – backed by Best® Theratronics’ trusted expertise and commitment to quality. It delivers the required dose to help prevent TA-GVHD (Transfusion-Associated Graft-Versus-Host Disease).Superior Performance & Unparalleled Dose Uniformity
X-rays are produced by bombarding targets with electrons, which are accelerated in a vacuum through a high-voltage electrical field. The dose is delivered by two opposing X-ray tubes with the sample canister located centrally between them. The two cone-shaped beams ensure that a tight dose is delivered to the products and exceptional dose uniformity is attained.Available Model
Mk2 2.0L – irradiated 4 Bags (300 ml each) in ~2.0 minutes
Mk2 5.0L – irradiated 6 Bags (300 ml each) in ~5.5 minutes - Technical Info - Standard Features
Features

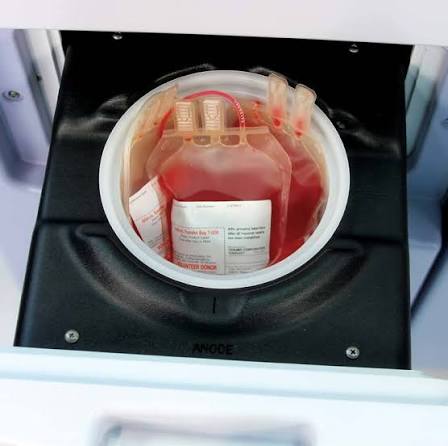

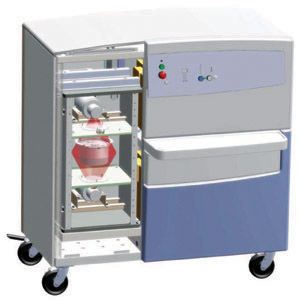

Raycell Mk2 Cross Section Larger canister size facilitates irradiating more blood bags – 2.0 L and 5.0 L (0.53 and 1.3 US Gallons).Two opposing x-ray tubes deliver a uniform dose to the product.
Dose delivery is controlled by setting and monitoring the irradiation time, based on the central dose rate.
Irradiation time is controlled by two independent microprocessors.
Detailed dosimetry of the sample canister volume is obtained and provided at the time of installation.
Installation can take 1-3 days depending on individual installation and training requirements.

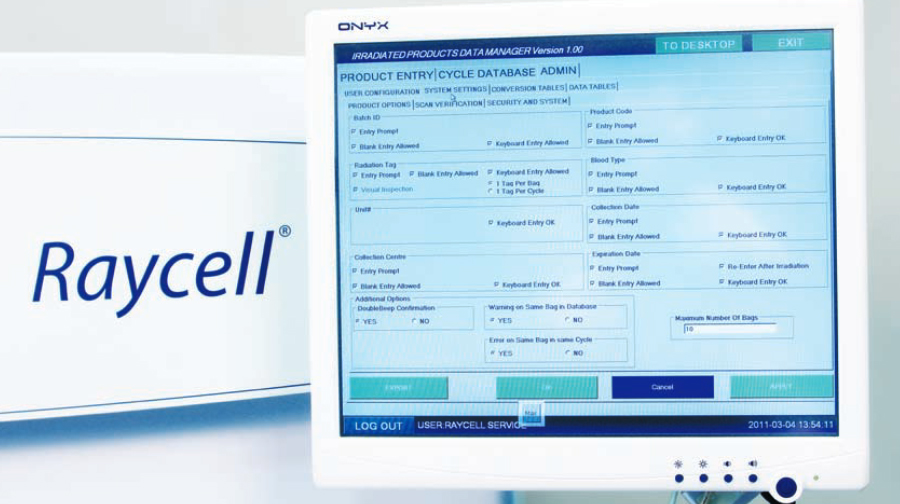

Irradiated Products Database Management (IPDM) System:
Scans and stores bar-coded information about the irradiated product (unit number, product code, blood type, etc.), irradiation cycle number, operator details, date/time stamp, and irradiation indicator verification.Scans barcodes using ISBT 128 and ABC Codabar2 decoders, or as is without decoding.
Includes three modes of operation: product entry, cycle database review, and administration.
Performs additional verification of the irradiation time.
Stores up to 50,000 product entries of data in main database, and archives the rest.
Exports data conveniently onto a USB memory stick (1 stick provided, 2 USB ports).
Ensures efficient, error-free operation.
LIMS connection.
- Technical Info - Optional Add-ons
• IPDM System
• Self-Contained Cooling System
• Heat Exchanger
• Syringe Holder
• UPS
• Service Agreements
• Irradiator Verification Indicators
• Additional Canisters
• Chiller - Enquiry
