Automatic Bench Tube Sealer
Automatic bench sealer for PVC/EVA tubes, touchscreen control, 1-2 second seal, up to 500 continuous seals, parallel-unit capable.
- General Details
The Vasini Automatic Bench Sealer MOD. BS01 is an automatic bench sealer for PVC and EVA tubes, equipped with a motorized sealing head and an output for an optional external motorized sealing clamp. The sealing process is fully automated and microprocessor-controlled, requiring no adjustments to seal tubes of different sizes, with automatic energy management for energy-saving operation.
A 2.8-inch color touchscreen displays all functions, process control, alarms and operating parameters, with acoustic and visual alarms for incorrect/incomplete sealing, high temperature or internal malfunction. The unit seals standard tubes from 2mm to 6.5mm diameter (max wall thickness 0.8mm) in 1-2 seconds, with wide-flange sealing for easy segment separation and a rating of up to 500 continuous seals. Up to 6 units can be connected in parallel for simultaneous sealing.
- Technical Info - Standard Features
Fully automatic, microprocessor-controlled sealing process.
Automatic energy management with energy-saving function.
2.8″ color touchscreen display.
Tube retention (tear-proof pressers) and optical tube-presence sensors.
Seals tubes 2mm-6.5mm diameter, max wall thickness 0.8mm, in 1-2 seconds.
Sealing guaranteed up to 3 bar (bags tested to burst at 2 bar).
High-performance RF generator, up to 500 continuous seals.

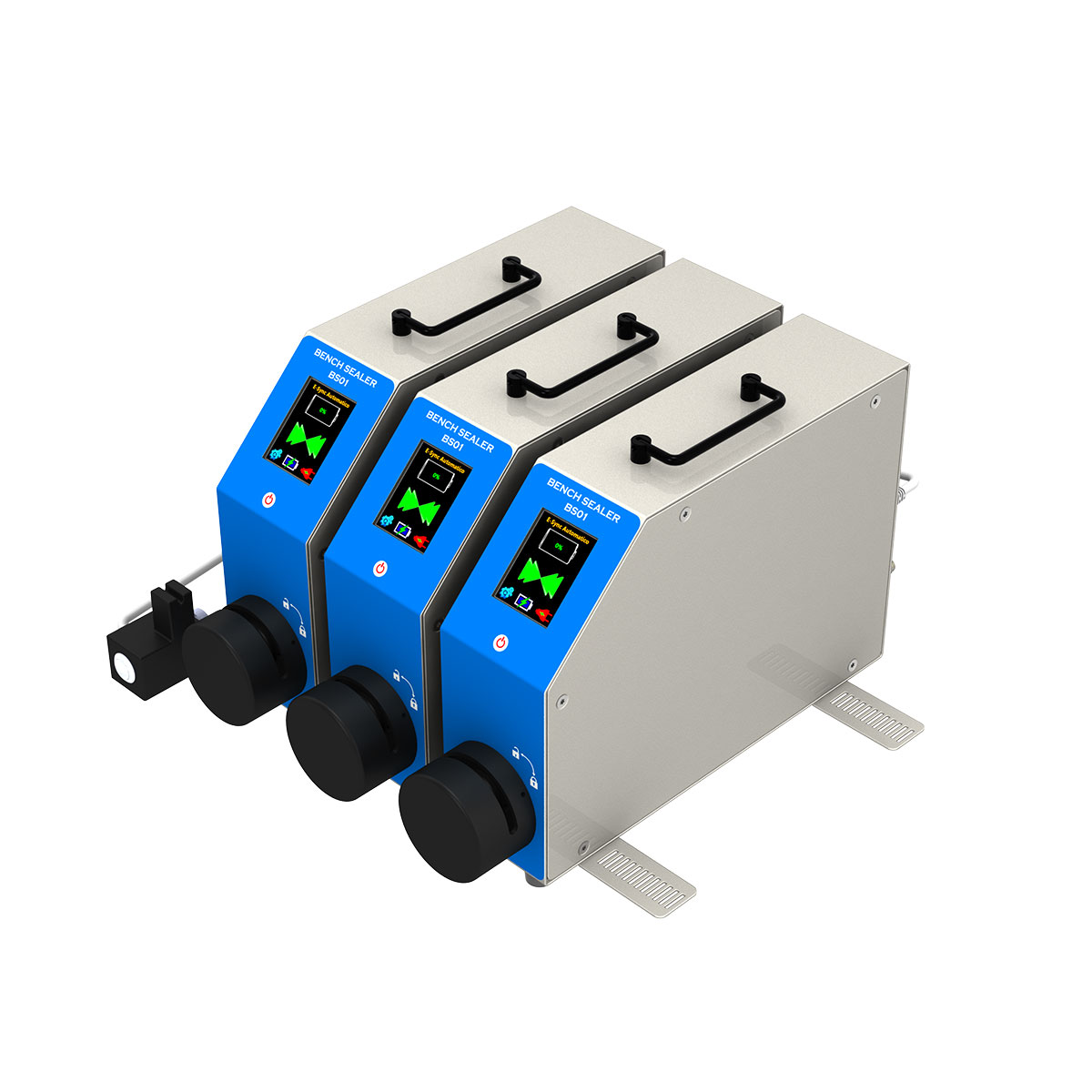

Up to 6 units connectable in parallel, adjustable pitch (min. 80mm).
Retractable splash guard system.
Lithium-ion battery: over 4,000 sealing.cycles when fully charged (optional)
Low energy consumption (300W max during sealing); weight 5.5 kg - Technical Info - Optional Add-ons
External motorized sealing clamp.
Sealing activation via button/pedal.

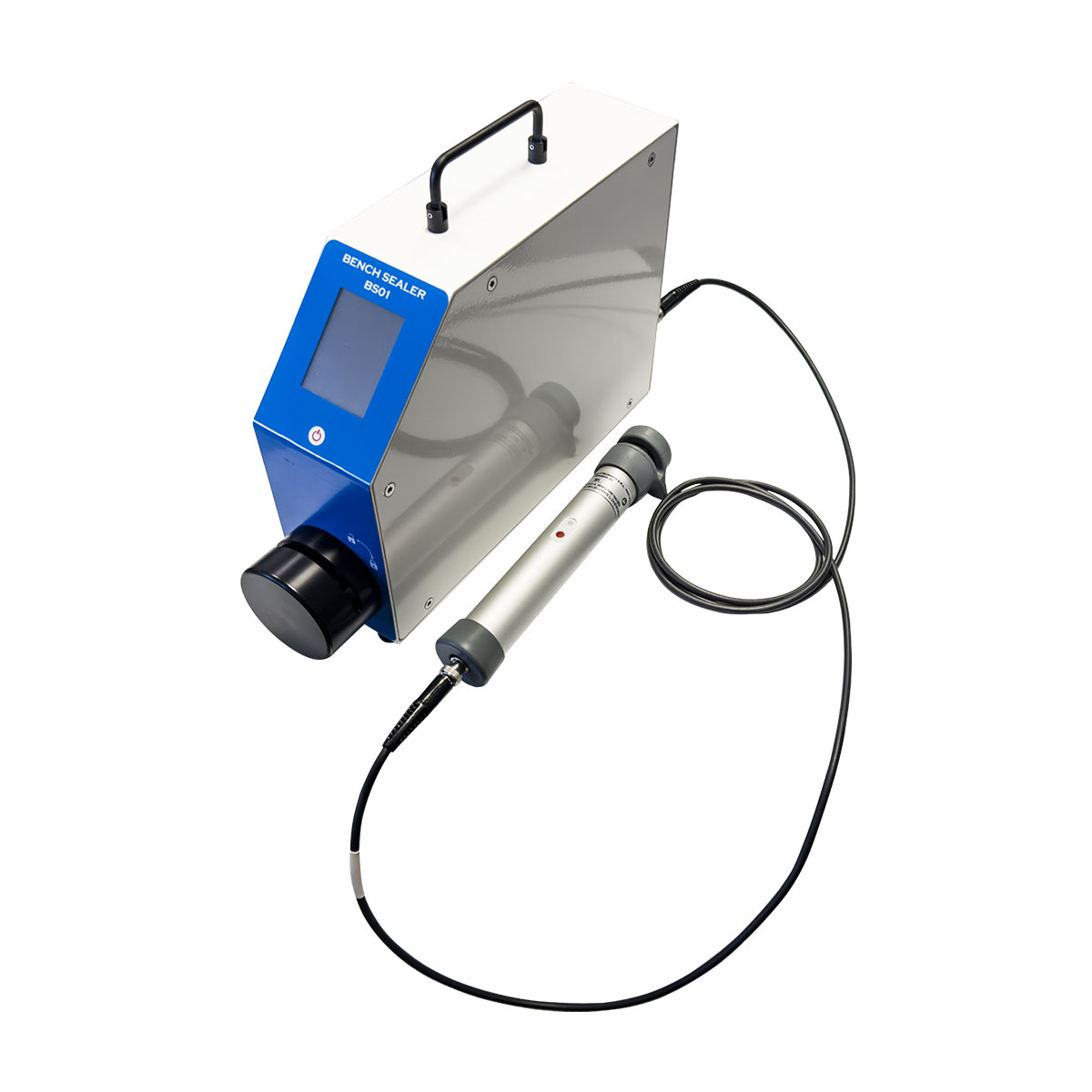

External automatic handset unit with LED status indicator.
