Dental Intraoral X-Ray (Wall-Mounted)
High-frequency wall-mounted intraoral X-ray system, 3 arm lengths, wireless-switch option, compatible with digital sensors, plates and film.
- General Details

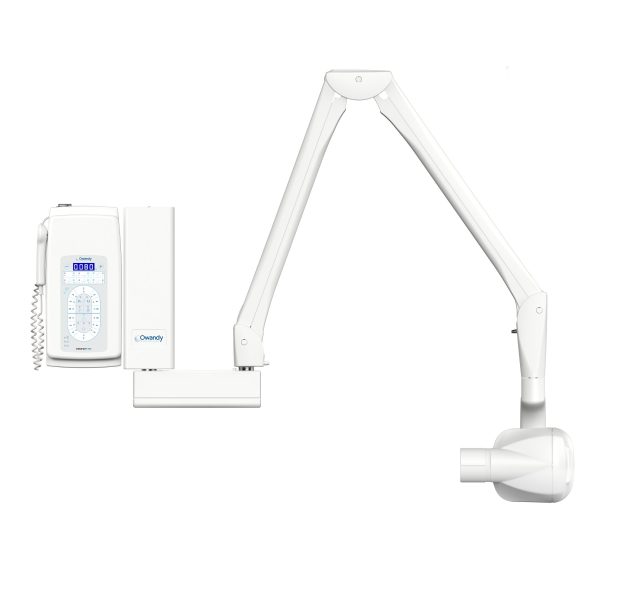

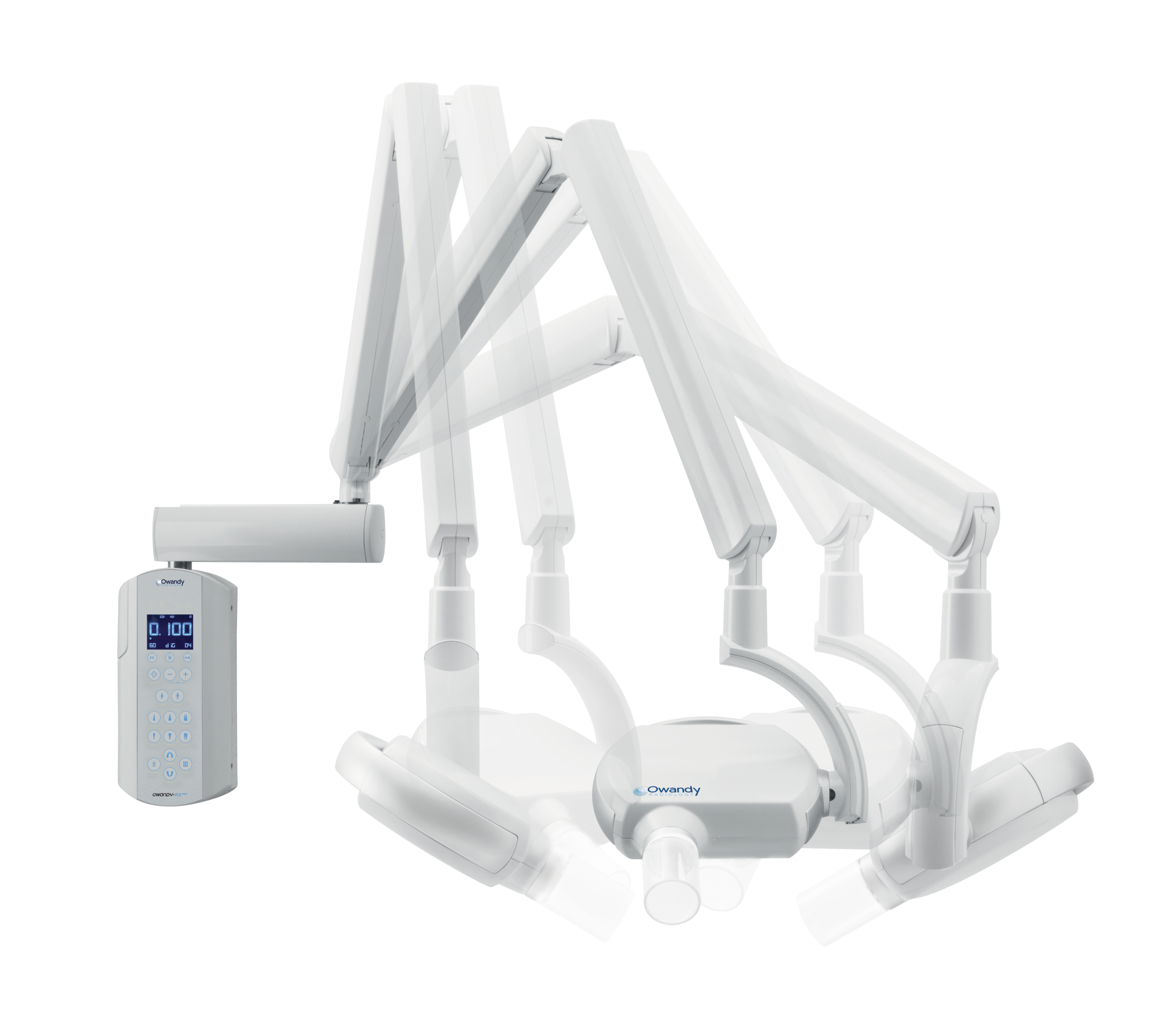

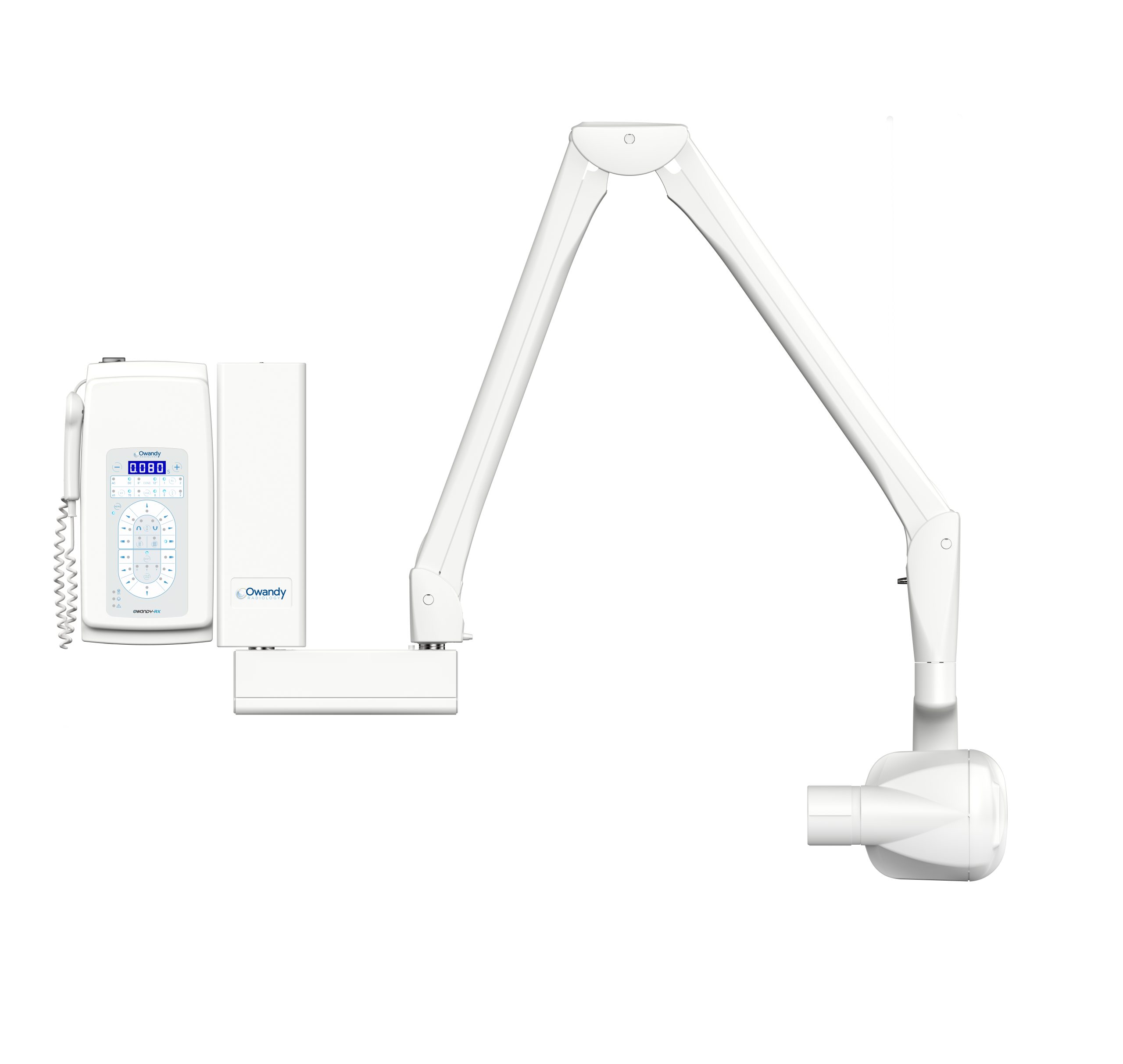

The Owandy-RX DC is a wall-mounted high-frequency intraoral radiology system designed for accuracy, reliability and ease of use, with a subtle, compact design (3 available arm lengths) that adapts to a wide range of surgery layouts; a mobile version is also available.
It works with all receiver terminals (digital sensors, imaging plates, films) and offers an intuitive, user-friendly configuration of exposure settings (exposure time, patient typology, kV, mA). High-frequency technology reduces X-ray dose and eliminates harmful soft rays, and a wireless switch option allows remote control of X-ray emissions for maximum operator safety.
- Technical Info - Standard Features
Category Class I, type B (CEI EN60601-1:2007).
Supply voltage 115/230 V, single phase 50/60 Hz.
Power input 1.2 kVA; High voltage 60-70 kV; Anode current 4-8 mA.
Focus 0.7 mm; Total filtration equivalent to 2.4 mm Al@70 kV.
Leakage radiation less than 0.25 mGy/h.
Direct current technology.
Timer from 0.02 to 3.2 secs.
Head weight 5.5 kg
Total weight 19.5 kg.
3 arm extensions: 41/82.5/110cm.
Compatible with digital sensors, imaging plates and film.
- Technical Info - Optional Add-ons
• Wireless (remote X-ray control) switch.
• Long cone (31 cm) / Long rectangular cone (31 cm) accessories. - Enquiry
